AFNOR SSLL14: Plane frame bending

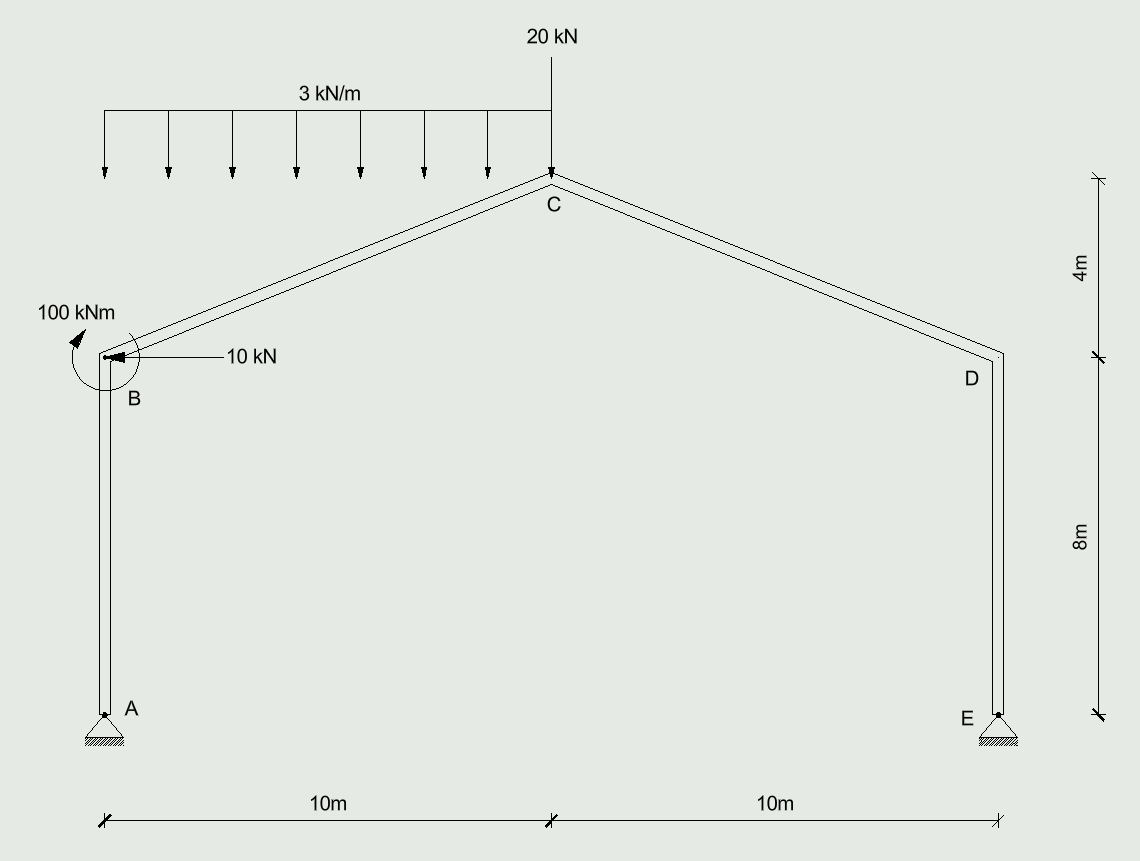

1. Problem definition

verification-ssll14

  • Material properties:

    • Young's modulus, E = 210 GPa
    • Poisson ratio, nu = 0.3

  • Section properties:

    • AB, DE:
      • Moment of inertia, Iy = 5.0E-4 m^4
    • BC, CD:
      • Moment of inertia, Iy = 2.5E-4 m^4

2. Songeya model

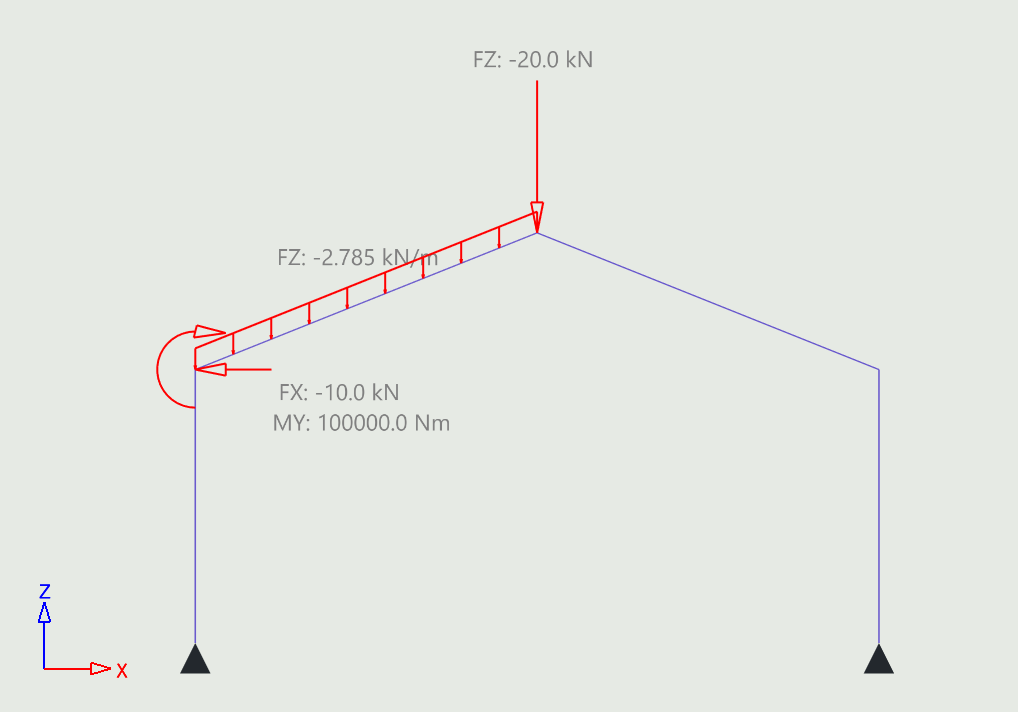

Load intensity for the distributed load is projected onto the axis of the member.

verification-ssll14

3. Comparison

Position Parameter description Songeya results AFNOR results Difference Comment
Member GF Vertical reaction, FZ (N) 531500.0 31500.0 0.0% OK
C Horizontal reaction, FX (N) 20239.4 20239.4 0.0% OK
B Translation, TZ (m) -0.03072 -0.03072 0.0% OK

4. Reference

Société française des mécaniciens. (1990). Guide de validation des progiciels de calcul de structures. Afnor.
