AFNOR SSLS03: Circular plate under uniform load

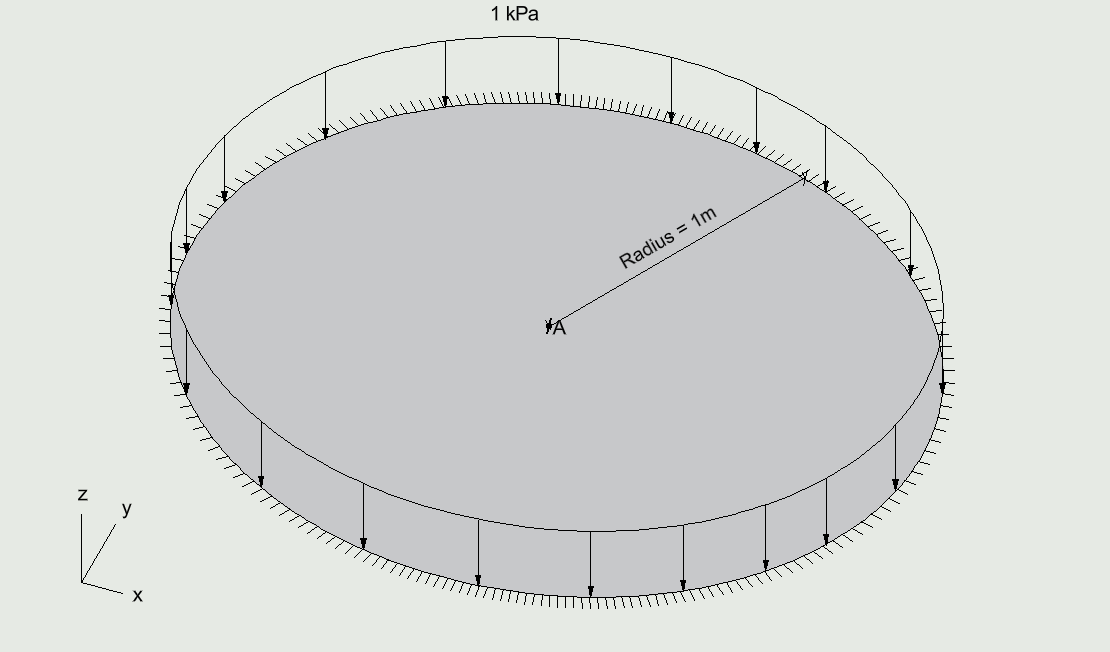

1. Problem definition
-
Material properties:
- Young's modulus, E = 210 GPa
- Poisson ratio, nu = 0.3
-
Thickness properties:
- Thickness: 5 mm
-
Supports:
- Fixed along edge
-
Loads:
- 1 kPa

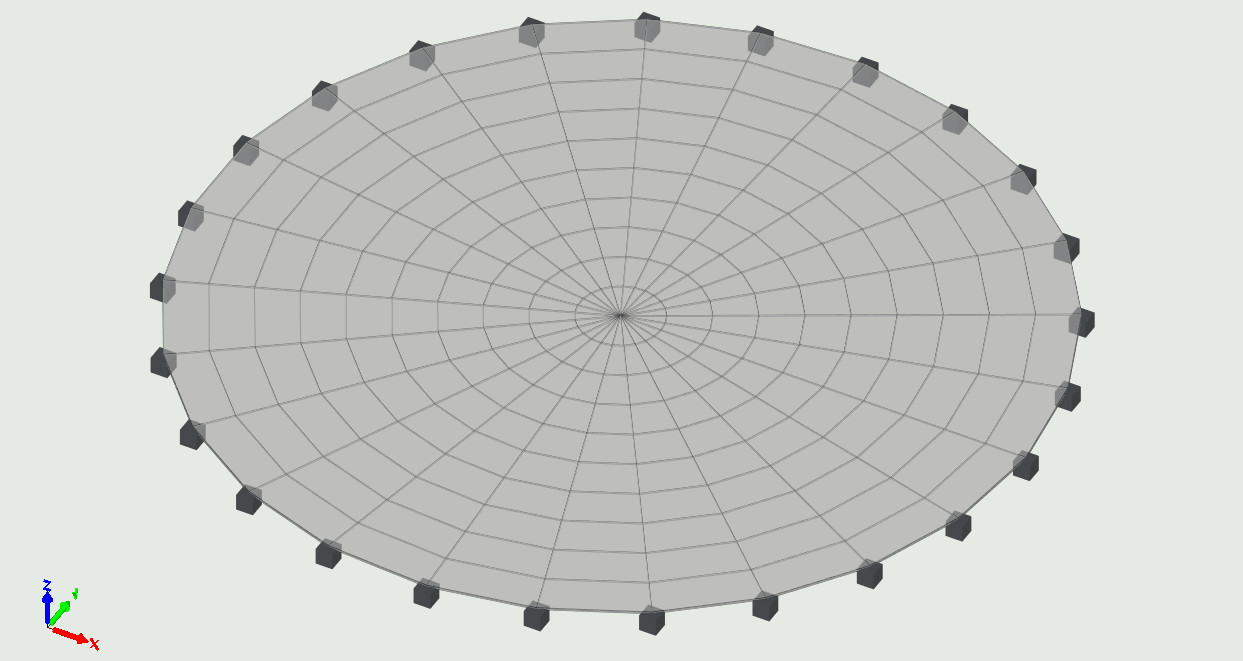

2. Songeya model
3. Results

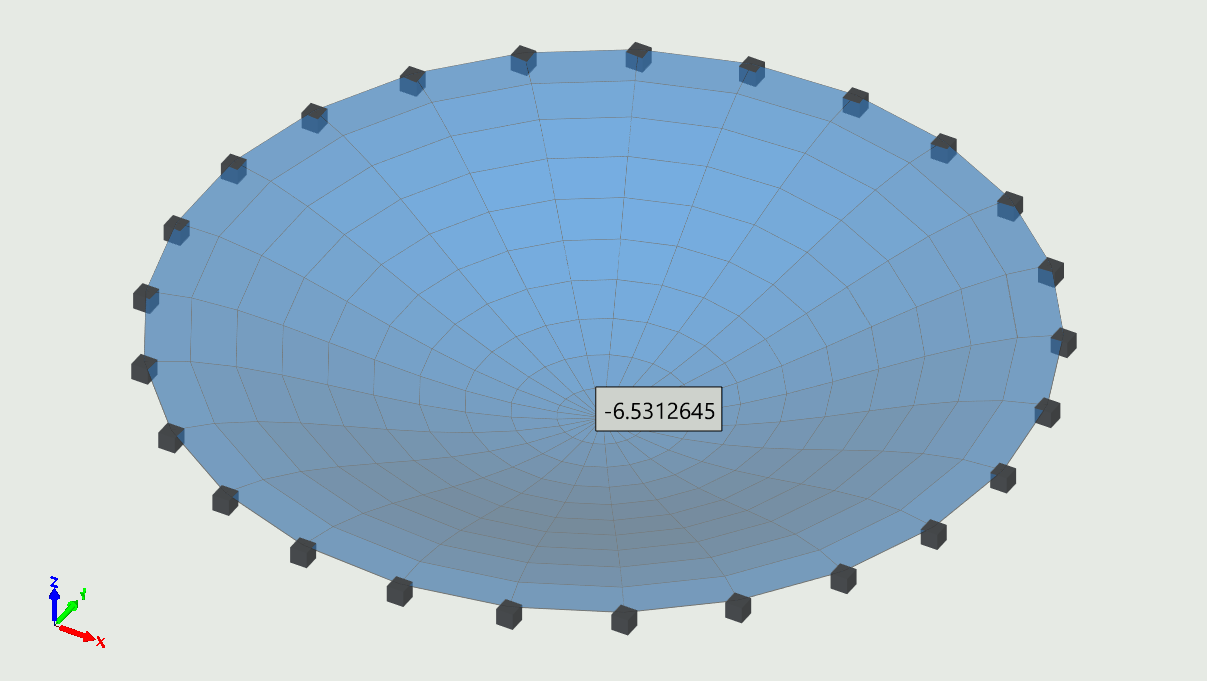

3.1 Translation: TZ
4. Comparison
| Position | Parameter description | Songeya results | AFNOR results | Difference | Comment |
|---|---|---|---|---|---|
| A | Translation, TZ (mm) | -6.531 | -6.500 | 0.5% | OK |
5. Reference
Société française des mécaniciens. (1990). Guide de validation des progiciels de calcul de structures. Afnor.
