AFNOR SSLP01: Rectangular membrane under in-plane shear

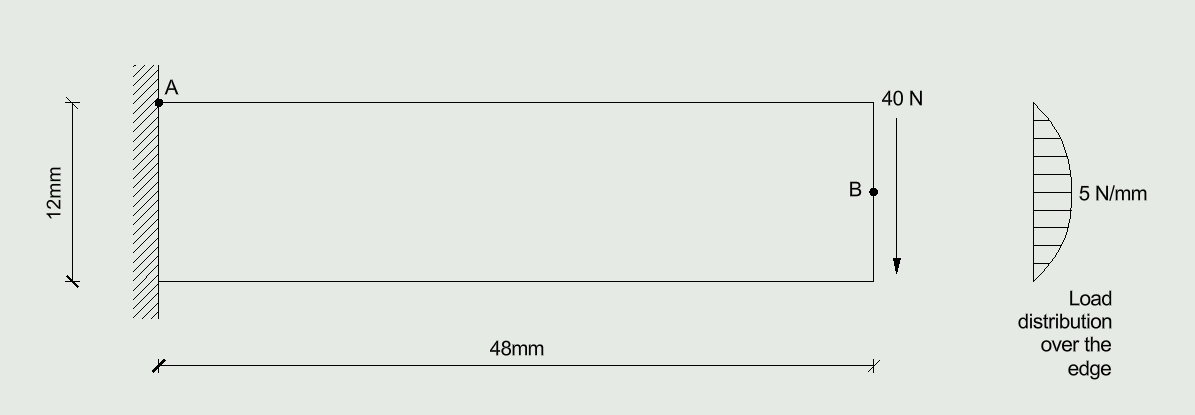

1. Problem definition
-
Material properties:
- Young's modulus, E = 210 GPa
- Poisson ratio, nu = 0.25
-
Thickness properties:
- Thickness: 1 mm

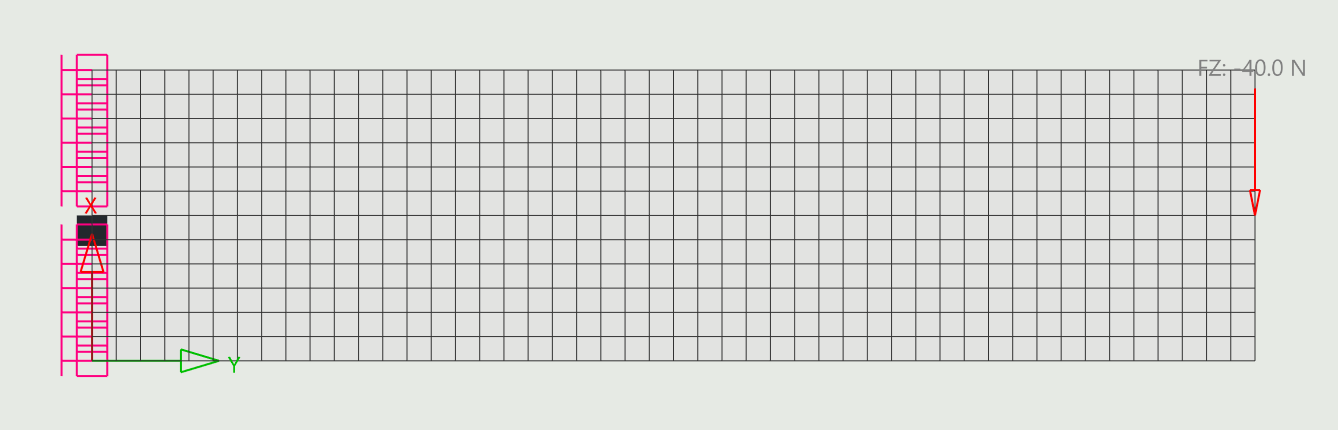

2. Songeya model
3. Results

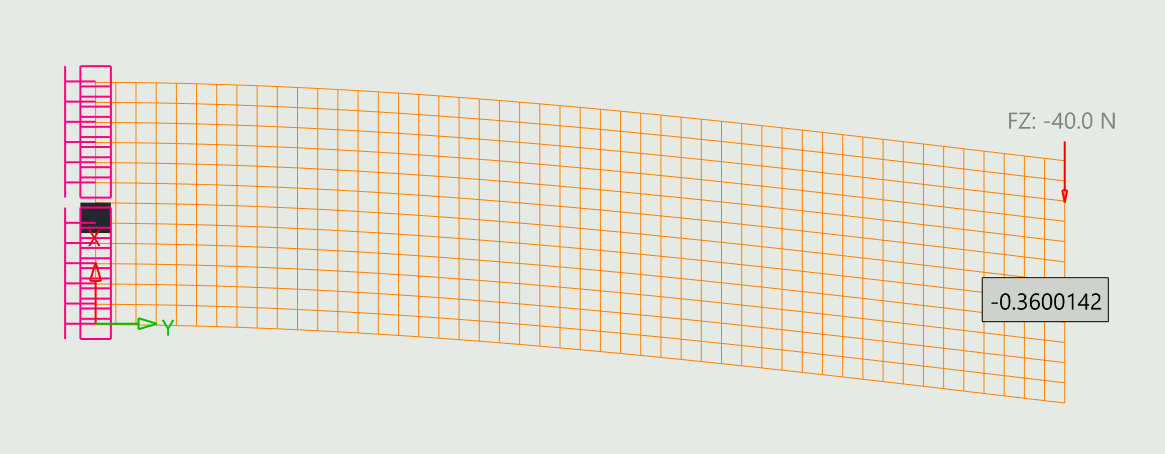

3.1 Deformation

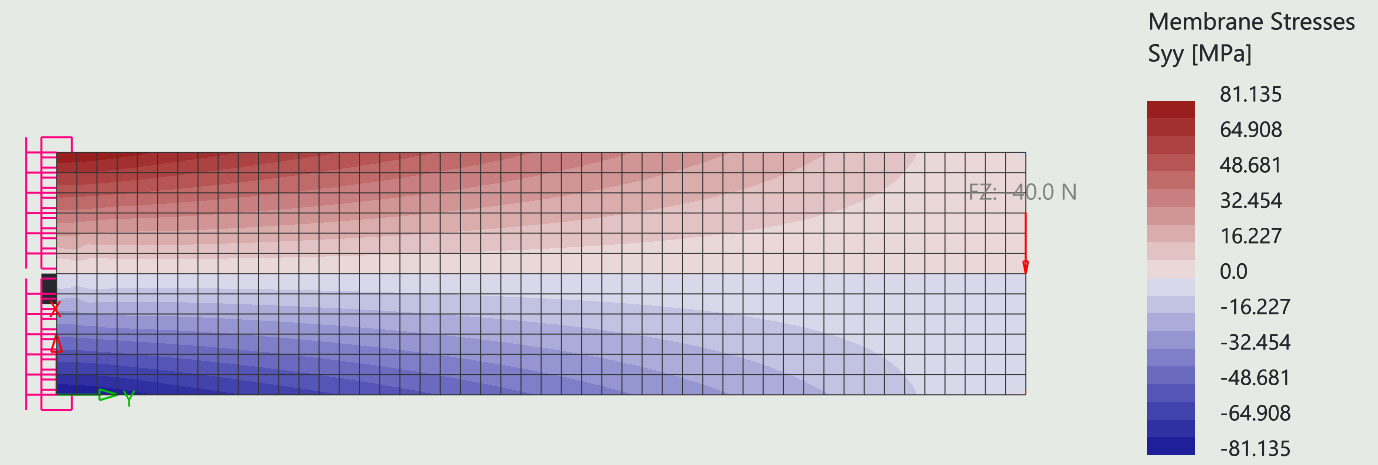

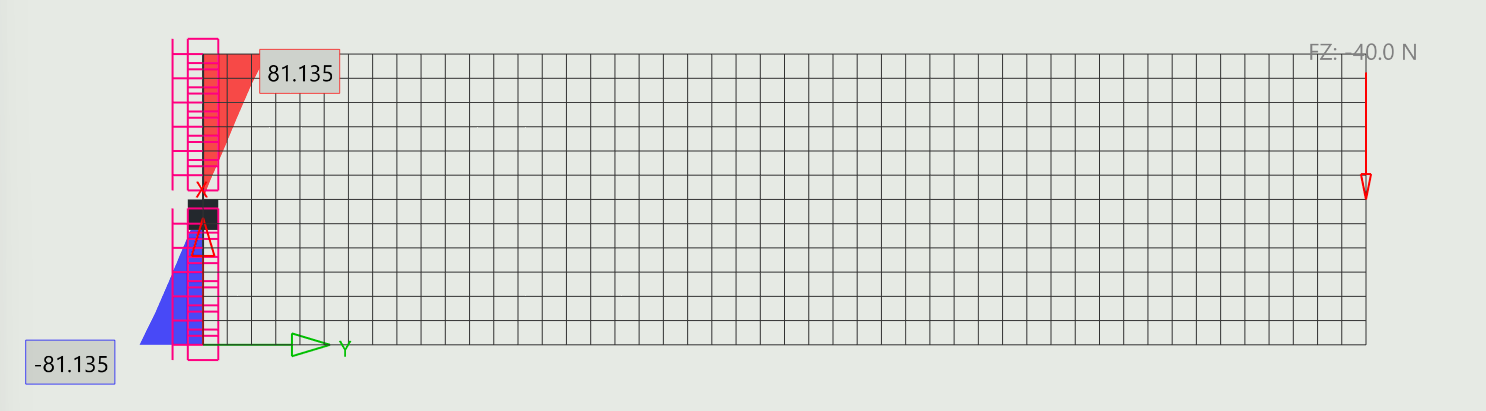

3.2 Membrane stresses
4. Comparison
| Position | Parameter description | Songeya results | AFNOR results | Difference | Comment |
|---|---|---|---|---|---|
| B | Translation, TZ (mm) | 0.3600 | 0.3573 | 0.8% | OK |
| A | Membrane stress, Syy (MPa) | 81.1 | 80.0 | 1.4% | OK |
5. Reference
Société française des mécaniciens. (1990). Guide de validation des progiciels de calcul de structures. Afnor.
