AFNOR SSLS07: Thin-walled cylinder with uniform axial load

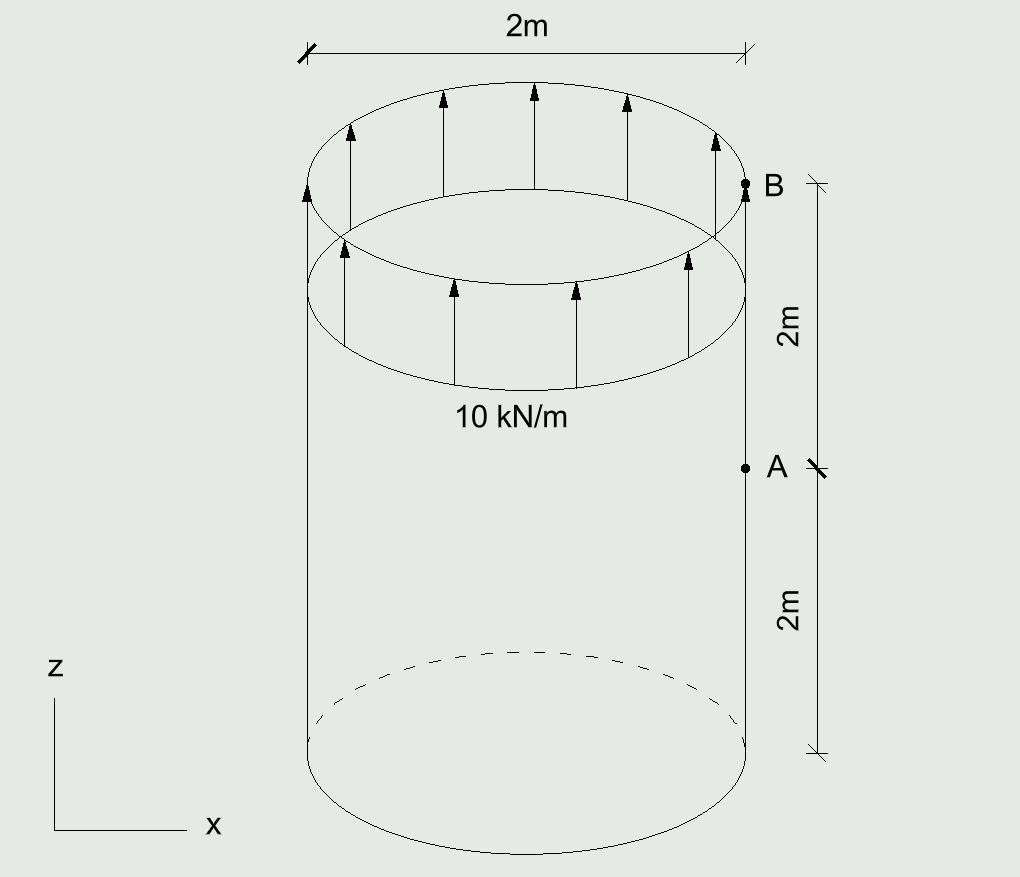

1. Problem definition
-
Material properties:
- Young's modulus, E = 210 GPa
- Poisson ratio, nu = 0.3
-
Thickness properties:
- Thickness: 20 mm
-
Supports:
- Fix translation in Z on one end
-
Loads:
- 10 kN/m in Z on other end

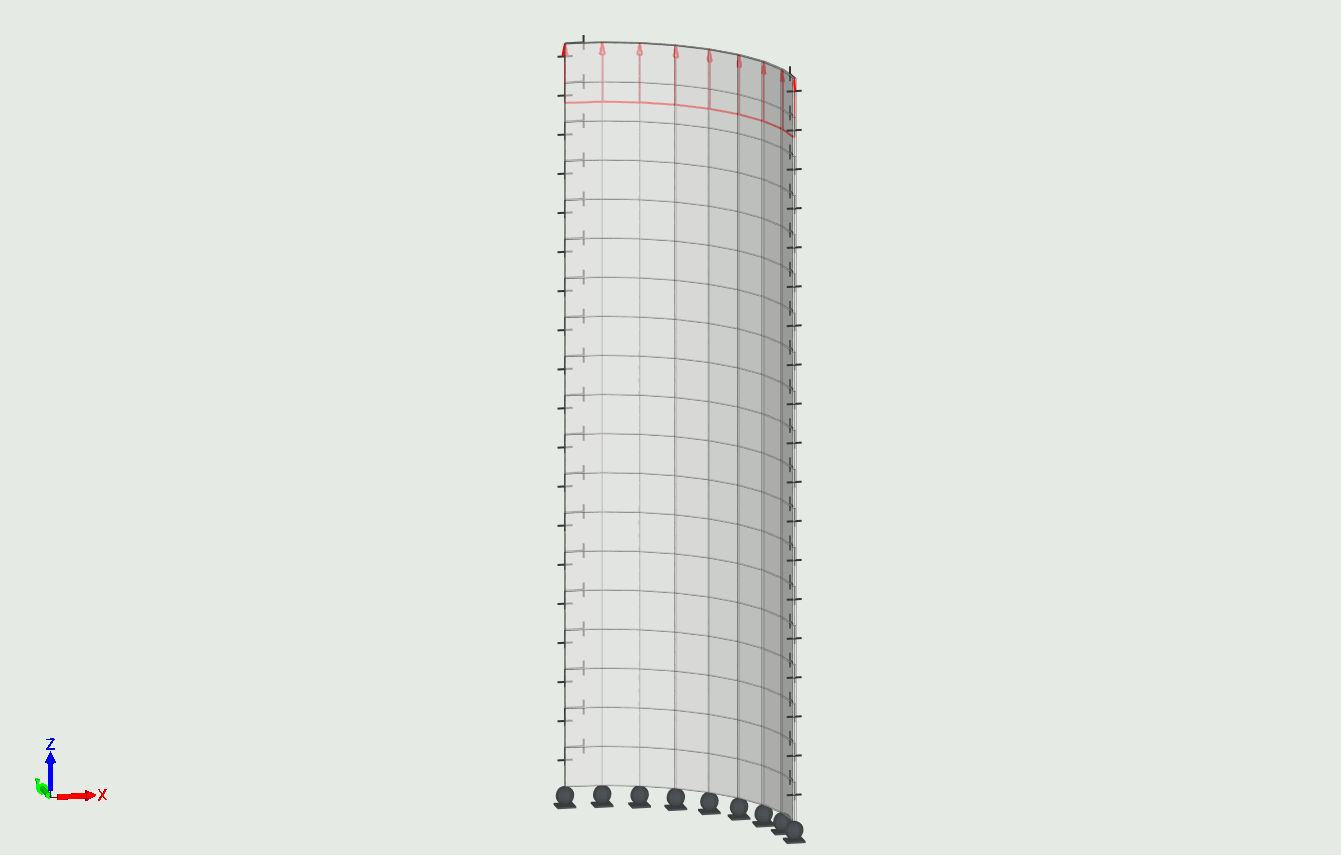

2. Songeya model
Model only one quarter of the cylinder and impose symetry boundary conditions
3. Results

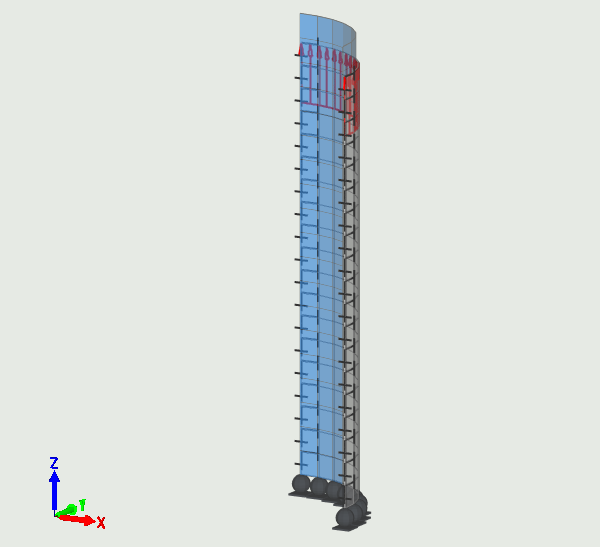

3.1 Total deformation

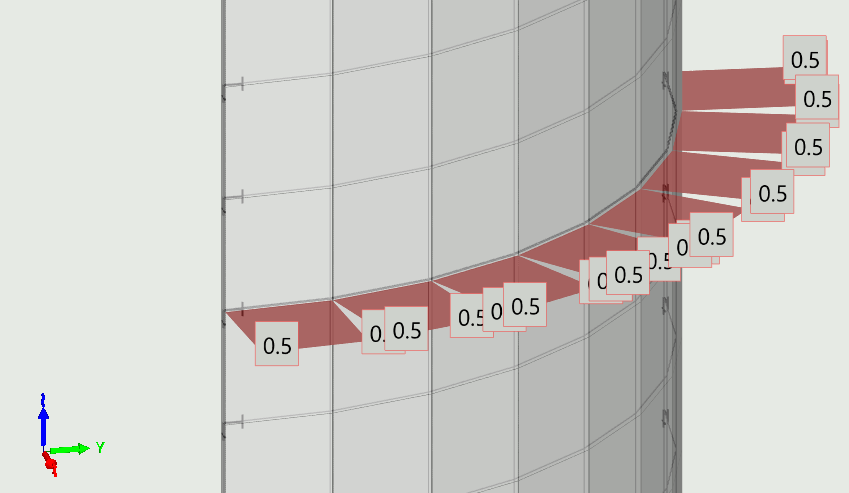

3.2 Membrane stresses
4. Comparison
| Position | Parameter description | Songeya results | AFNOR results | Difference | Comment |
|---|---|---|---|---|---|
| A | Translation, TX (mm) | 7.143 e-3 | -7.140 e-3 | 0.0% | OK |
| A | Tension stress (kPa) | 500.0 | 500.0 | 0.0% | OK |
| B | Translation, TZ (mm) | 9.524 e-3 | 9.520 e-3 | 0.0% | OK |
5. Reference
Société française des mécaniciens. (1990). Guide de validation des progiciels de calcul de structures. Afnor.
